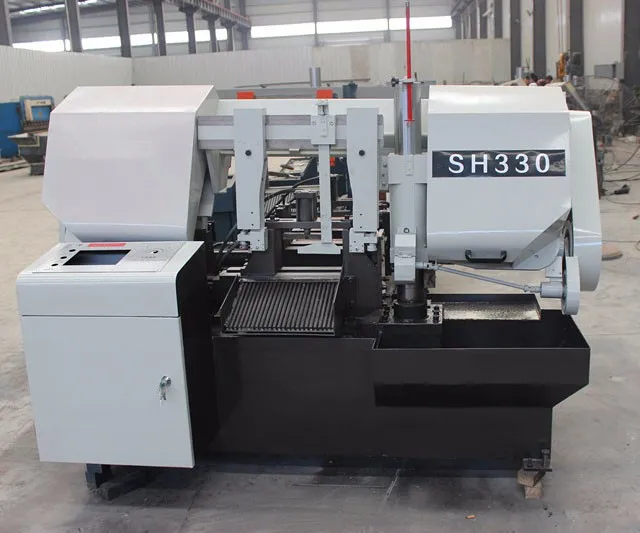

CNC Horizontal steel cutting bandsaw machine
- Condition:
-
New
- Place of Origin:
-
Hebei, China
- Brand Name:
-
SH
- Model Number:
-
SH-330
- Voltage:
-
220V/380V
- Rated Power:
-
2.2kw
- Dimension(L*W*H):
-
1900*2300*1500
- Weight:
-
1960kg
- Certification:
-
CE ISO
- Product name:
-
CNC Horizontal steel cutting bandsaw machine
- belt line speed(m/min):
-
40/60/80
- Hydraulic generator power(kw):
-
0.75
- Cooling generator power (kw):
-
0.09
- Working clamp style:
-
Hydraulic
- Saw belt tighten style:
-
Hand
- Main trasmit structure:
-
Turbine
- Loading style:
-
Extra roller
- Max single feeding (mm):
-
500
- After-sales Service Provided:
-
Engineers available to service machinery overseas
- Warranty:
-
2 Year
- Supply Ability:
- 20000 Set/Sets per Year
- Packaging Details
- will be wrapped with Plywood Case; Pallet packing; Polyfoam Filling; Bolt Secured
Suitable for sea transport
- Port
- Xingang,Qingdao,Shanghai
- Lead Time :
- Shipped in 30-90 days after payment depend on the machine type

The main performance characteristics:
-- International famous brand components get precise measurement of tolerance
Length error < 0.15 mm
Feeding speed error < 0.10 mm
-- More working efficiency:
Automatic band sawing machine is suitable for sawing with large quantities of the same specifications, stable performance and high efficiency. It is 3 times replacement than ordinary sawing machine ‘s working efficiency.
-- Alternative operation mode
Button type control panel, sawing mode change flexible, manual and automatic combination;
-- PLC control
PLC controller, complete automatic sawing process,

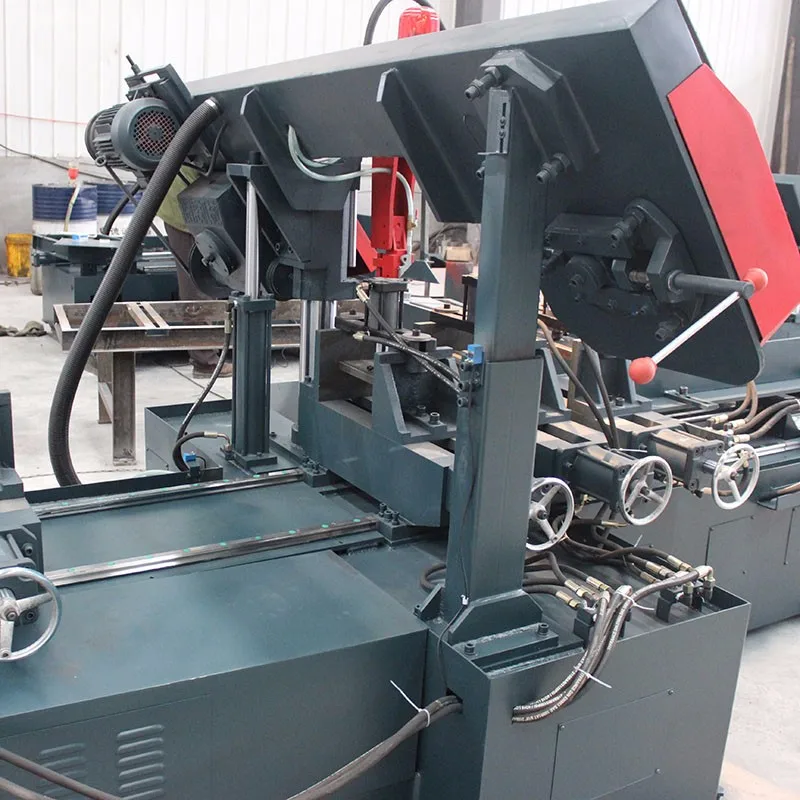

- Double upright column structure, high stability;
- Stepless regulation speed adjustment
Type | SH-260 | SH-300 | SH-330 | SH-360 |
Cut capcity W*H (mm) | round 260 | round 300 | round 330 | round 360 |
square 260*260 | square 300*300 | square 330*330 | square 360*360 | |
Bundle cutting W*H (mm) | Max.200*90 | Max.280*100 | Max.280*100 | Max.300*160 |
Min.100*20 | Min.200*20 | Min.200*20 | Min.200*20 | |
Saw belt size(mm) | 3505*27*0.9 | 4115*34*1.1 | 4115*34*1.1 | 4115*34*1.1 |
belt line speed(m/min) | 40/60/80 | 40/60/80 | 40/60/80 | 40/60/80 |
Main generator power(kw) | 2.2 | 3 | 3 | 3 |
Hydraulic generator power(kw) | 0.75 | 1.5 | 1.5 | 1.5 |
Cooling generator power (kw) | 0.09 | 0.09 | 0.09 | 0.09 |

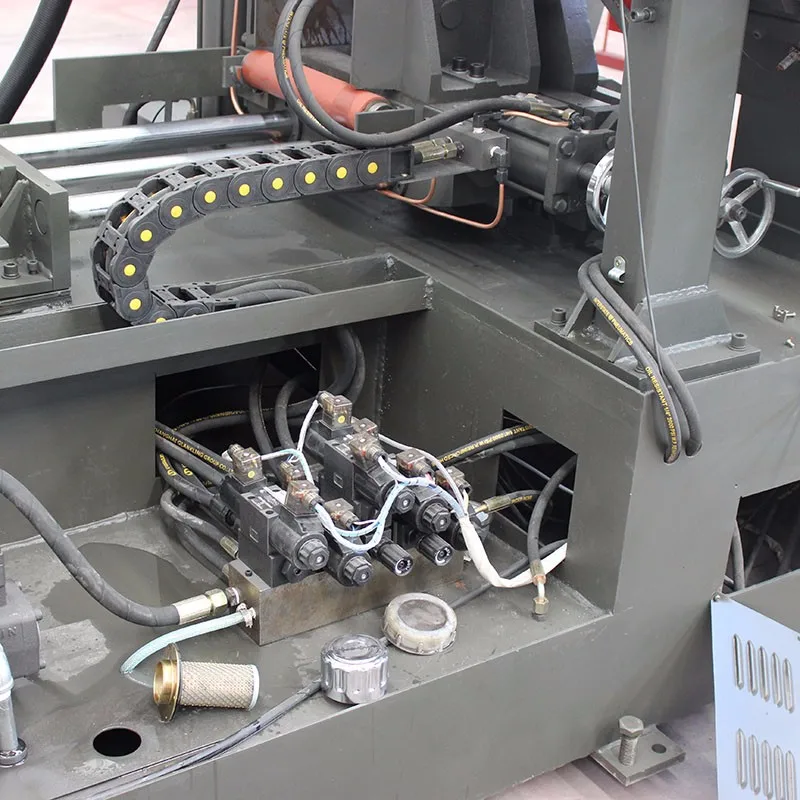

Working clamp style | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Saw belt tighten style | Hand | Hand | Hand | Hand |
Main trasmit structure | Turbine | Turbine | Turbine | Turbine |

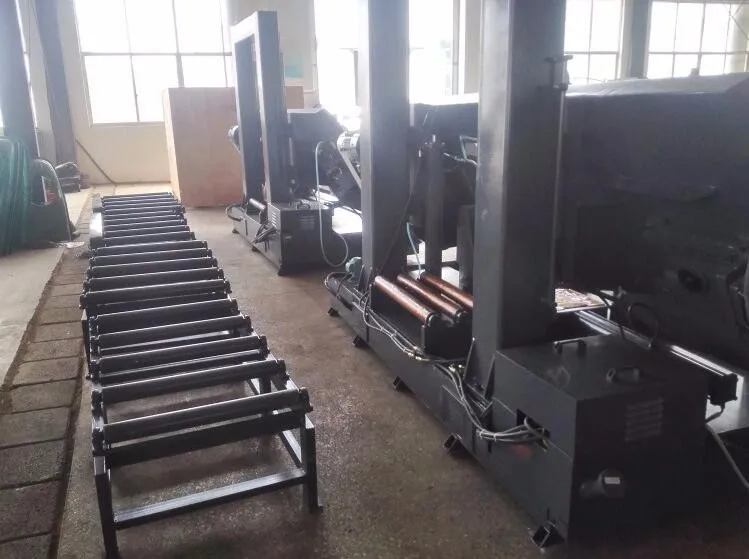

Loading style | Extra roller | Extra roller | Extra roller | Extra roller |
Volume of oil case (L) | 60 | 80 | 80 | 80 |
Volume of water case (L) | 40 | 50 | 50 | 50 |
Max single feeding (mm) | 500 | 500 | 500 | 500 |
Working table height (mm) | 650 | 650 | 650 | 650 |
Weights of machine (kgs) | 1600 | 1800 | 1960 | 2200 |
Packing dimensions(mm) L*M*H | 1750*2200*1450 | 1900*2200*1500 | 1900*2300*1500 | 2100*2550*1850 |

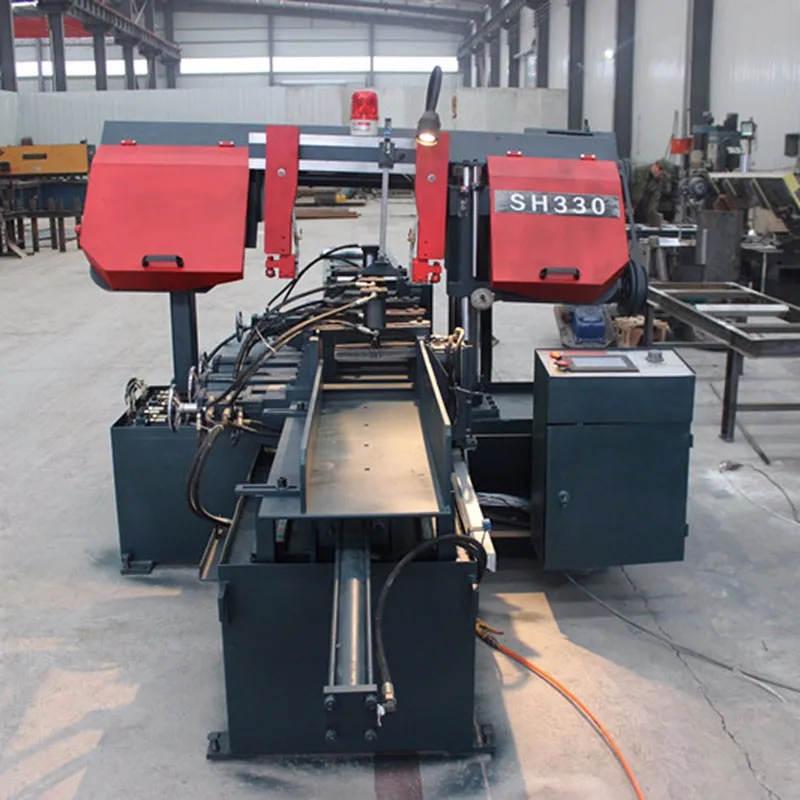

How to work of our CNC type Band Saw Machine?

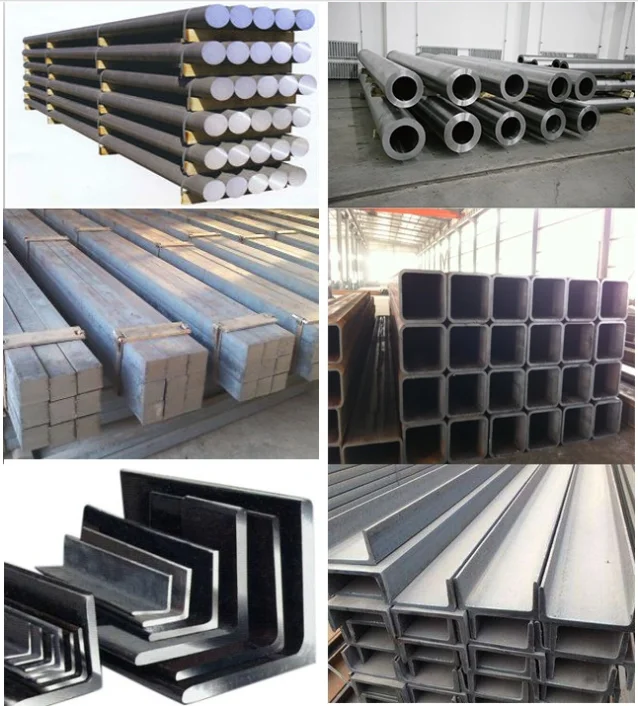

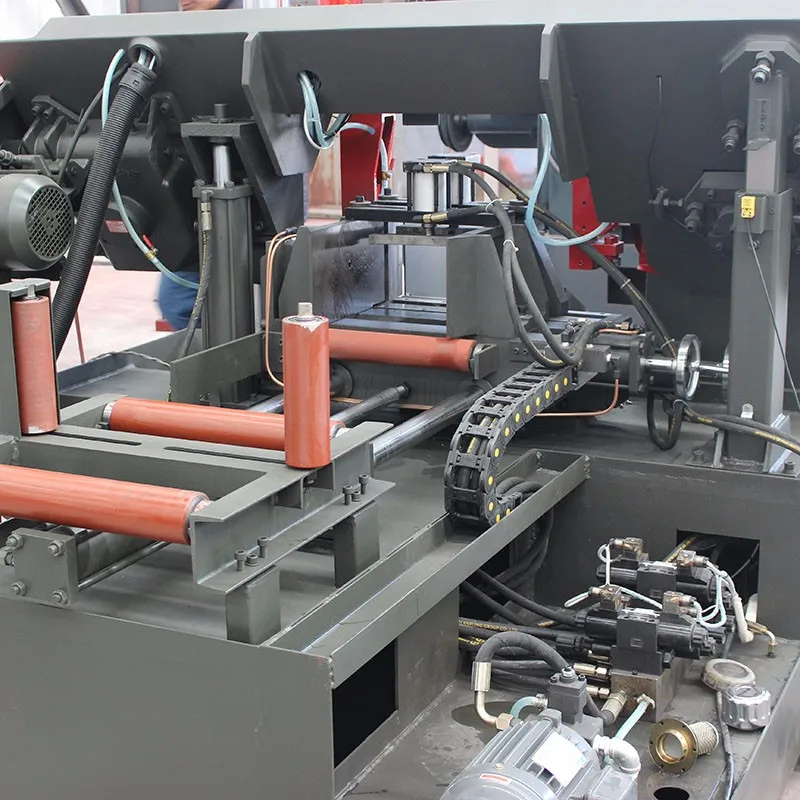

Horizontal CNC type band saw machine hold the workpiece stationary while the blade swings down through the cut. This configuration is used to cut long materials such as pipe or bar stock to length.
CNC Horizontal band saw machine can work automatically after user set the length and pieces into PLC system.High efficiency and accuracy.it can offer a user experience like no other.
This automatic cnc band saw machine is fully guarded and is fitted with automatic shut down in the event of a blade breakage. The blade tensioning system has a tension indication gauge for accurate tensioning.


still have problems,CLICK HERE, our special team will answer you within 24 hours!
What can we offer customers?
Professional pre-sales guidance
Rich quality resources
Accurate program manufacturing
Improve the pre-sale service system




For high precision metal cutting, is the ideal equipment for the industrial and mining enterprises and small workshops, usage is extensively.


Shean is specialized in designing,manufacturing,selling,exporting since 2011.
Our main products:
Induction pipe bending machine,
Elbow forming machine,
Tee machine,
Hydraulic press machine,
Saw banded machine,
Pipe Bevel machine,
Laser marking machine,
Press fittings M and V type
Shean is keeping updating on its technology and management. By years improvement, We have 80 technicians and 300 workers in the group.
We have more than 80 self design products and molds for you to choose from. We release at least 3 types of new products per month to meet market trends .With our rich experience and considerable service,we have been recognized as a reliable supplier in from many international buyers.
For ensure quality ,we have 150+ QC members to carry out strict inspection at each storage. Including in-coming QC, in process QC and final inspectors.


1.What is your payment terms for bandsaw cutting machine :
T/T, L/C, WEST UNION, D/P,O/A, Trade Assurance are also acceptable after negotiation.
2. What is your delivery time of automatic saw cutting machine?
For standard model, the delivery usually is about 10-15 working days after receiving deposit.
If in OEM, will be about 20-25 working days
3. What is your voltage and rated power supply for the hydraulic bandsaw for metal?
This is done as per client’s request
4. What is your Min Order Quantity(MOQ) cnc hot sale horizontal cutting bandsaw ?
1 set . Our customers can be end users, retailers and wholesalers.
