Elbow Hot Forming Machine SH-H Induction Elbow Machine

FOB Reference Price:Get Latest Price
$5,000.00 - $300,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Shean
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Place of Origin:
Hebei, China
Brand Name:
SH
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Warranty:
1 Year
Machine Type:
Chamfering Machine
Name:
Elbow Hot Forming Machine SH-H Induction Elbow Machine
Production range:
OD 21-1420mm
Radius:
1D, 1.5D, 2D
Thickness:
3mm-100mm
Drive type:
Hydraulic, Chain
Material:
Carbon Steel, Alloy steel
elbow machine advantage NO.1:
Easy to operate,adopt PLC control
Elbow Machine advantage NO.2:
Energy saving
Application:
elbow marker
Supply Ability
Supply Ability:
20 Set/Sets per Month Elbow Hot Forming Machine SH-H Induction Elbow Machine
Packaging & Delivery
Packaging Details
Elbow Hot Forming Machine SH-H Induction Elbow Machinewill be wrapped with Plywood Case; Pallet packing; Polyfoam Filling; Bolt Secured
Suitable for sea transport
Port
Tianjin,Shanghai,Qingdao
Video Description
Product Description

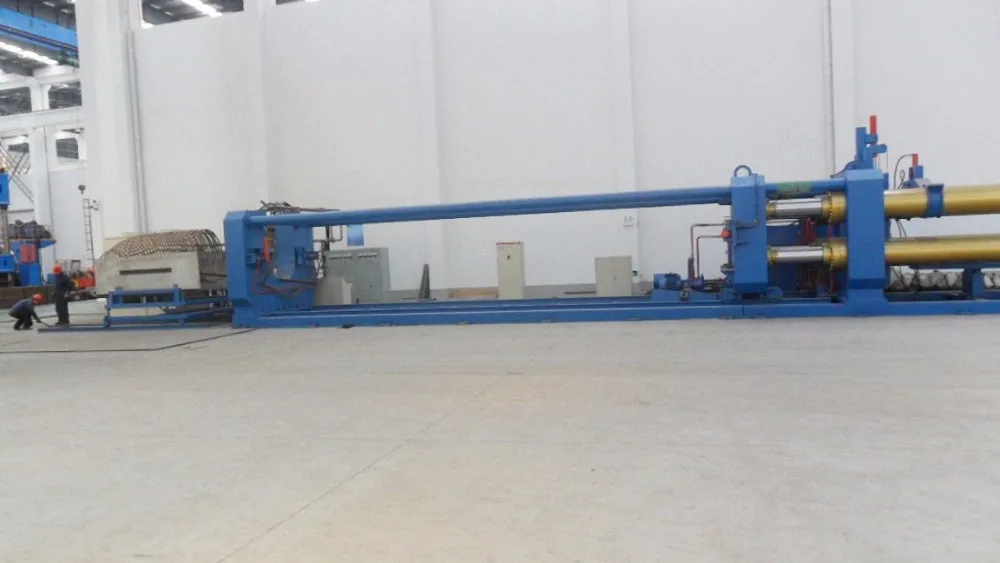

Elbow Hot Forming Machine SH-H Induction Elbow Machine Elbow hot forming machine is designed and constructed for manufacturing the small radius (1D/1.5D) carbon steel elbows,alloy steel elbows. Medium Frequency Steel Elbow Machine has various designed ways, can be produce 2 piece of elbows in a time or support producing of elbow as well as 180 degree bend. And also sizes below 219mm, the machine can automatic working with our PLC control system. These elbows are widely used in the connection of the industrial pipelines for the Petrochemical , gas, oil pipes, electrical power and food, etc


Item
OD(mm)
Max.Thickness(mm)
Cylinder(pc)
Max. pushing power(t)
Medium frequency(KW)
1
OD1420
20
670
700-800
2
OD1220
20
4
600
600-650
3
OD1020
20
4
500
550-600
4
OD820
20
4
400
500-550
5
OD720
20
4
320
450-500
6
OD630
20
2
300
400-450
7
OD530
14
2
160
350-400
8
OD426
14
2
130
300-350
9
OD325
14
2
84
200-250
10
OD219
14
2
65
160-200

Elbow Hot Forming Machine SH-H Induction Elbow Machine  Main Features

1.Production range: OD 21-1420mm

2.Radius: 1D, 1.5D, 2D
3.Thickness: 3mm-100mm
4.Material: carbon steel
5.Drive type: Hydraulic, Chain
6.Design: Hydraulic pushing Hydraulic clamp cylinder Automatic lifting material Medium Frequency heating system All controllings are in one operation case

    Heating power part---Constant power output. Using the unique voltage stabilized technology, the output power can still be constant, even the input voltage fluctuated by 10%.The power supply have the advantage of energy saving ,environment friendly, small noise.

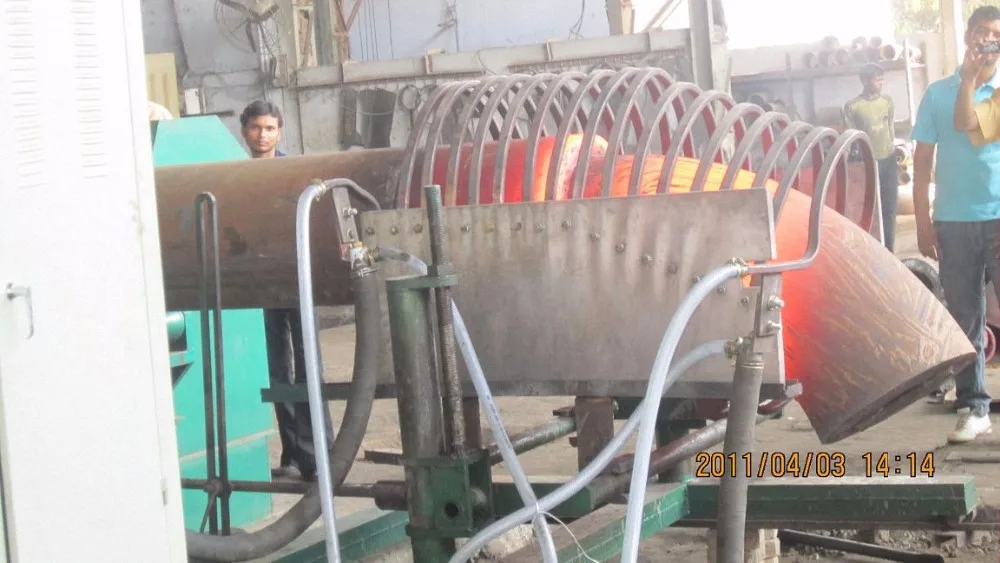

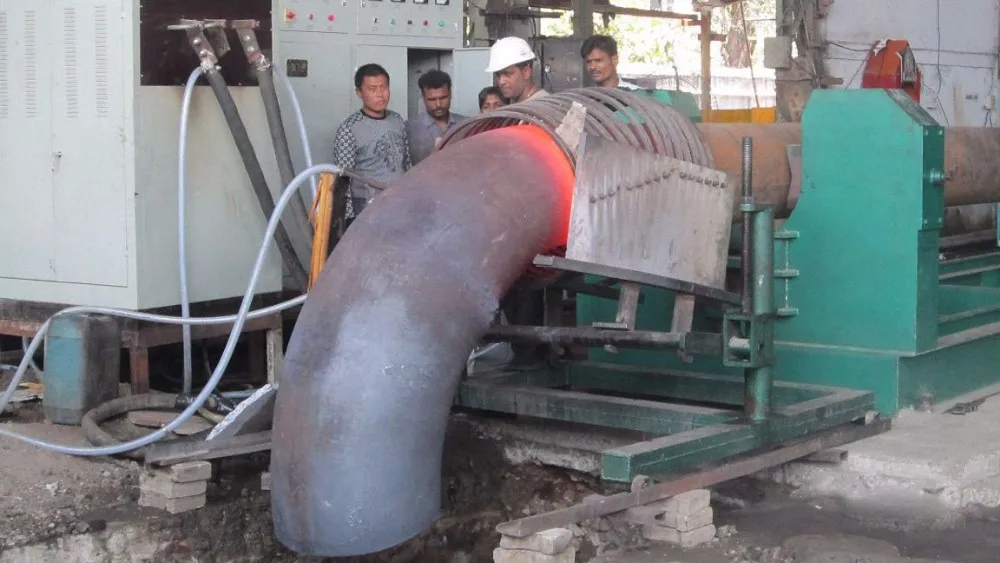

The induction coil can be adjusted by motor for movement of up and down,front and back, rotary. Easy and safe to operate by handle control.

By adopting PLC control system, the elbow producing can be running automatically. One worker only need putting the material pipe to the feeding device which improved the producing speed , reduced the labor intensity.
Certifications

Elbow Hot Forming Machine SH-H Induction Elbow Machine

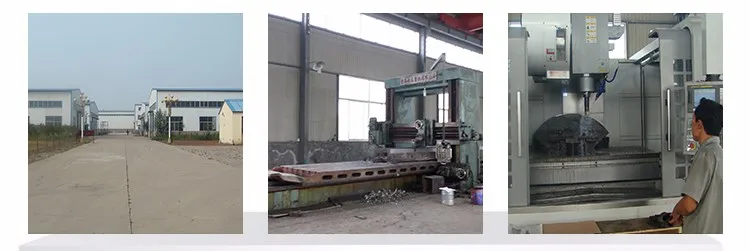

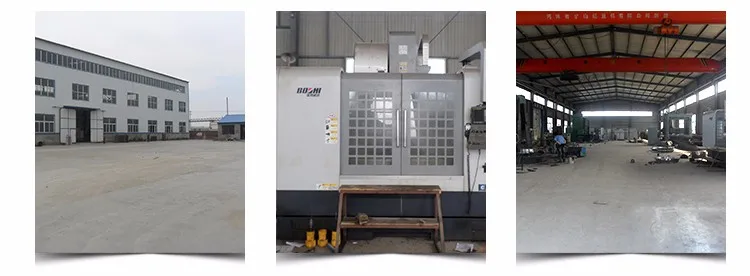

Our Factory
