plc induction hydraulic steel pipe bending hot foming machine

FOB Reference Price:Get Latest Price
$20,000.00 - $59,800.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
SH
Model Number:
EDW
Product name:
heating heavy wall steel pipe bending machine
Production range:
OD60mm-2000mm(2-80inches)
Radius:
2.5 D ≤ R ≤ 10D ≤ 15000mm.
Thickness:
2-90mm
Angle:
0-180 degree
Bending material:
Carbon steel, alloy steel, stainless steel.
Operate way:
Manual, PLC.
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
will be wrapped with Plywood Case; Pallet packing; Polyfoam Filling; Bolt Secured
Suitable for sea transport
Port
Tianjin,Shanghai,Qingdao
Lead Time :
Shipped in 30-90 days after payment depend on the machine type
Video Description
bending machine

You may have following Questions:

1.Can your skilled craftsmen provide structural steel pipe bending for use in these areas ?
2.Is your pipe bending machine achieve to advanced metal bending process, offering optimum precision, efficiency and consistency ?
3.What is the induction bending machine difference with cold forming machine?
4.What is minimum Radii does your bender could make?


We can solve all these problems.

What is induction bending?

Simply put, induction bending is a method used to form perfect curvatures on hollow tubes while keeping their circumference intact. Heat induction bending is normally used when the pipes or tubes have smaller radii and bending angles are going up to 90 degrees,180 degree,radius from 2D to 10 D and above.

Specification

What is the bending machine specification?

Size
Type
IF type
Cylinder size (mm)
thickness
PLC available
6″
EDW-159
200KW
ID 140 OD168
5-20
NO
8″
EDW-219
200KW
ID 140 OD168
5-20
NO
12″
EDW-325
250KW
ID180 OD219
5-20
NO
16″
EDW-426
350KW
ID180 OD219
5-20
YES
20″
EDW-530
400KW
ID180 OD219
5-20
YES
24″
EDW-630
500KW
ID200 OD245
5-20
YES
28″
EDW-720
600KW
ID200 OD245
5-20
YES
32″
EDW-813
800KW
ID220 OD273
5-20
YES
36″
EDW-914
800KW
ID250 OD299
5-20
YES
40″
EDW-1020
800KW
ID250 OD299
5-20
YES
48″
EDW-1220
1000KW
ID280 OD325
5-20
YES
56″
EDW-1420
1000KW
ID280 OD325
5-20
YES
60″
EDW-1520
1000KW
ID280 OD325
5-20
YES
64″
EDW-1620
1000KW
ID320 OD377
5-20
YES
Product Description

Our bending machines

As we’ve said in the second paragraph, we are a Chinese supplier of perfect Induction Bending Machines that are custom designed to ensure the efficiency of operations and maximum bending speed and accuracy.

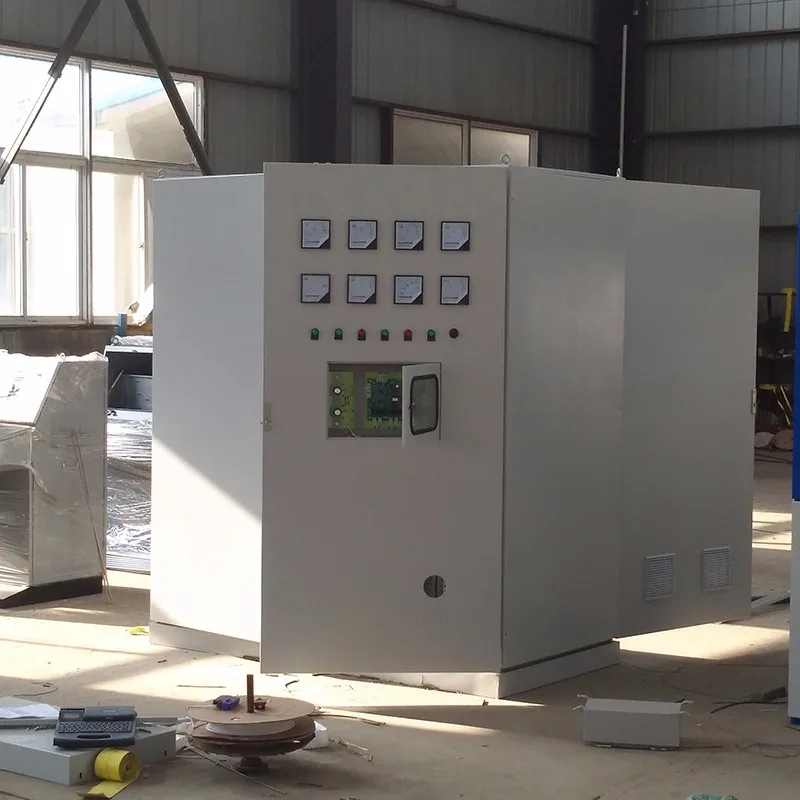

Since you already know what induction bending is, I will briefly explain how our Induction Bending Works. Basically, the bending machine bends pipes to their required radius by way of heating them through what is known as a Medium frequency heating panel.

To further explain this operation, a straight pipe is put into the machine where an induction heating coil creates a circumferential band around the pipe. The pipe is them heated until it reaches the required temperature and when it does, it is slowly pushed at a consistent speed until it forms a bend. Later on, it is cooled via a water cooling system.

Leave your requirement here ,our answer time is within 24 hours.
Want to know more,CLICK HERE, we have special technicians to answer your questions

Applications

induction bending machine can be used but I will highlight some industries were heat induction bending is commonly used. The first one is the Petroleum industry on their petroleum pipelines. Other industries include the food processing factories, gas wells, traffic control (lights) and shipyards,structural,public art,transportation and vehicles Power generation etc


Kinds of steel Structural available of Induction pipe bending machine:Steel Tube,Beams,Channels,Angles
Materials:
Carbon steel20G,A106B,A106C
Alloy steel: 345B,X42,X52,X60,335P12,P22,P91,12Cr1MoVG,WB36
Stainless steel : 304,316

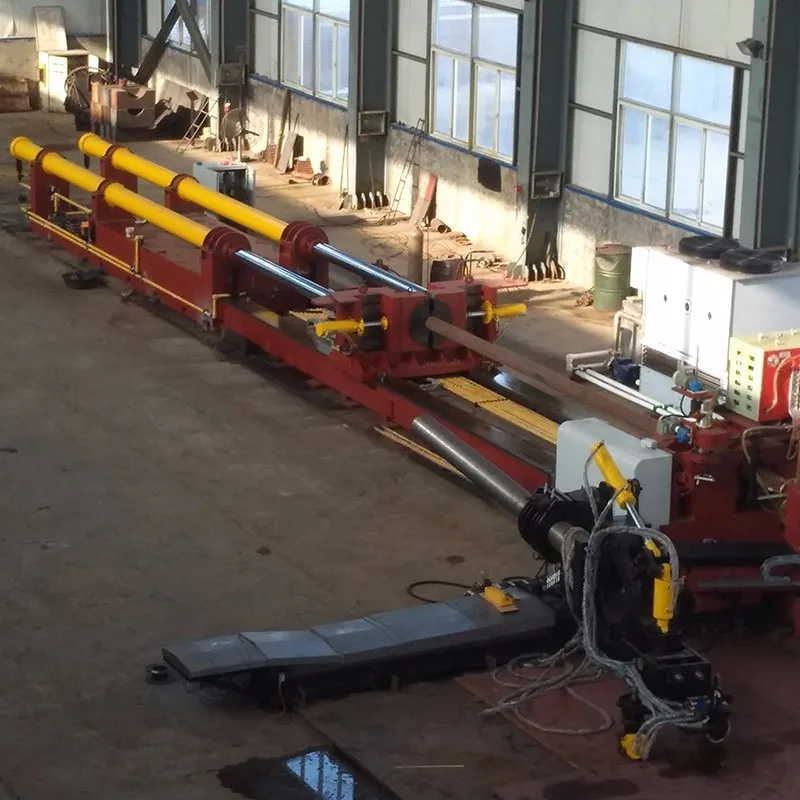

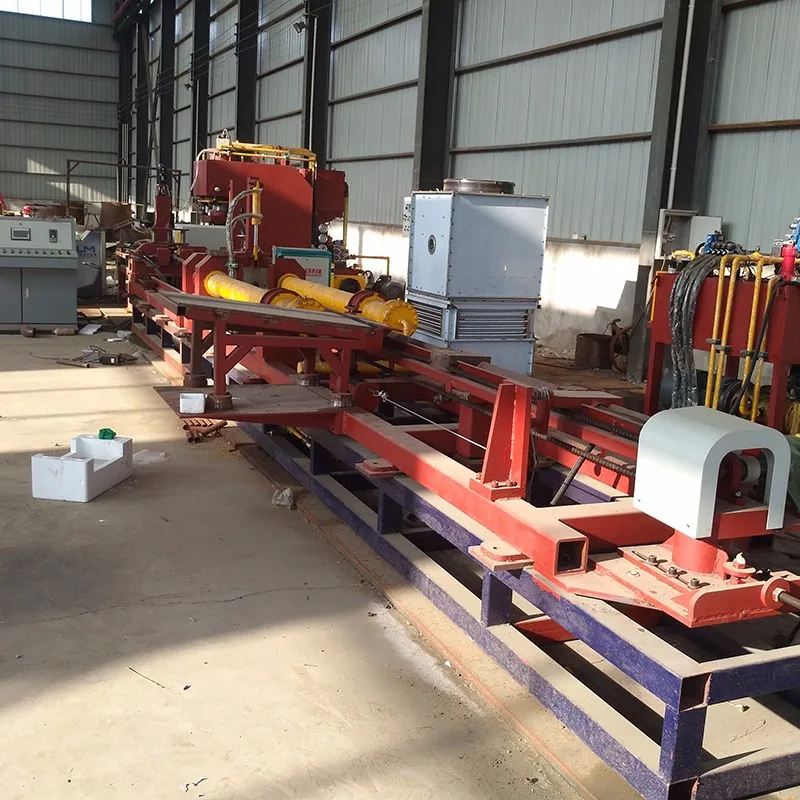

Detailed Images

Features

High quality. Careful work is put into both designing and manufacturing the machines to ensure that the final product is built to truly last a lifetime.
Strong Technical Design. The design aesthetics of our bending machine were made with durability in mind. Our machines are built to last.
Efficient Service team. We have trained personnel and technicians who are on standby and ready to come to your aid whenever required.


If you wish to invest in a bending machine, then we are the ideal Chinese Supplier to work with as we’ll do everything we can to ensure that all your needs are overly satisfied.
Still have any problems, CLICK HERE ,our special team will solve for you within short time.
